Goermicro Vzense industrial-grade 3D ToF camera provides high-precision 3D vision solutions based on advanced optical design and depth perception algorithms. It features a ranging accuracy of ±1mm, a dynamic range of 5 meters, and a point cloud output of 640*480@30fps, and has passed IP67 protection and wide temperature range certification. It supports industrial protocol integration and SDK secondary development, and is widely used in precision inspection, AGV navigation, logistics sorting and intelligent manufacturing, etc. promoting the upgrade of industrial automation with stable and reliable performance to meet the intelligent needs of Industry 4.0.

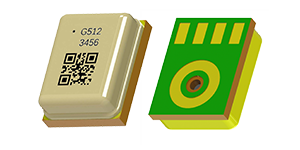

| High-performance Acoustic Sensor | |||
| Applications | Advantages | Key Parameters | Product Images |
| Industrial automation equipment | High SNR for clear sound detail capture and an enhanced voice interaction experience Wide frequency response to restore natural and authentic sound quality Low distortion to ensure sound purity | Size:5.0mm*4.0mm*1.33mm Sensitivity: -35dB SNR:75 dB AOP:136dBSPL Current:<300μA |  |
| Small-sized Acoustic Sensor | |||
| Applications: | Advantages | Key Parameters | Product Images |
| Industrial automation equipment | Ultra-small package size, suitable for thin and light devices Highly integrated design, simplifying terminal design | Size:2.25mm*1.75mm*0.8mm Sensitivity:-37dBFS SNR: 64dB AOP:130dBSPL Current:< 500μA |  |
| Intelligent Acoustic Sensor | |||
| Applications | Advantages | Key Parameters | Product Images |
| Industrial automation equipment | Fast local wake-up, protecting user privacy Multi-command recognition, convenient human-machine interaction Ultra-low power consumption design, extending terminal battery life Supports custom wake-up words, applicable to voice interaction and event detection | Size:3.56mm*2.65mm*1.08mm Sensitivity:-38dB SNR:63dB AOP:123dBSPL Power Consumption:<0.5mW |  |
| Dustproof Acoustic Sensor | |||
| Applications | Advantages | Key Parameters | Product Images |
| Industrial automation equipment | Efficiently filters particles of 2.5μm and larger, with 99% filtration efficiency for 5um particles IP6X dustproof capability, contributing to higher assembly yields | Size:3.5mm*2.65mm*0.98mm Sensitivity:-37dBFS SNR:65dB AOP:131dBSPL Current:< 1100μA |  |
| Water Depth Pressure Sensor | |||
| Applications | Advantages | Key Parameters | Product Images |
| Industrial automation equipment | Measurement of ambient pressure at atmospheric pressure and water depths up to 45m Small-sized packaging adapts to the | 2.7mm*2.7mm*1.7mm Absolute Pressure Accuracy: typ. ±1hPa Operating Current:3 μA(@ow power mode) |  |
| Voice Pick-Up (VPU) Sensor | |||
| Terminal Applications | Product Advantages | Key Indicators | Product Images |
| Industrial automation equipment | High signal-to-noise ratio performance, picking up effective voice vibration signals To achieve low power consumption and longer battery life of the products through hardware optimization and integration | 3.5mm*2.65mm*1.3mm SNR:≥77dB Current:120/125μA |  |

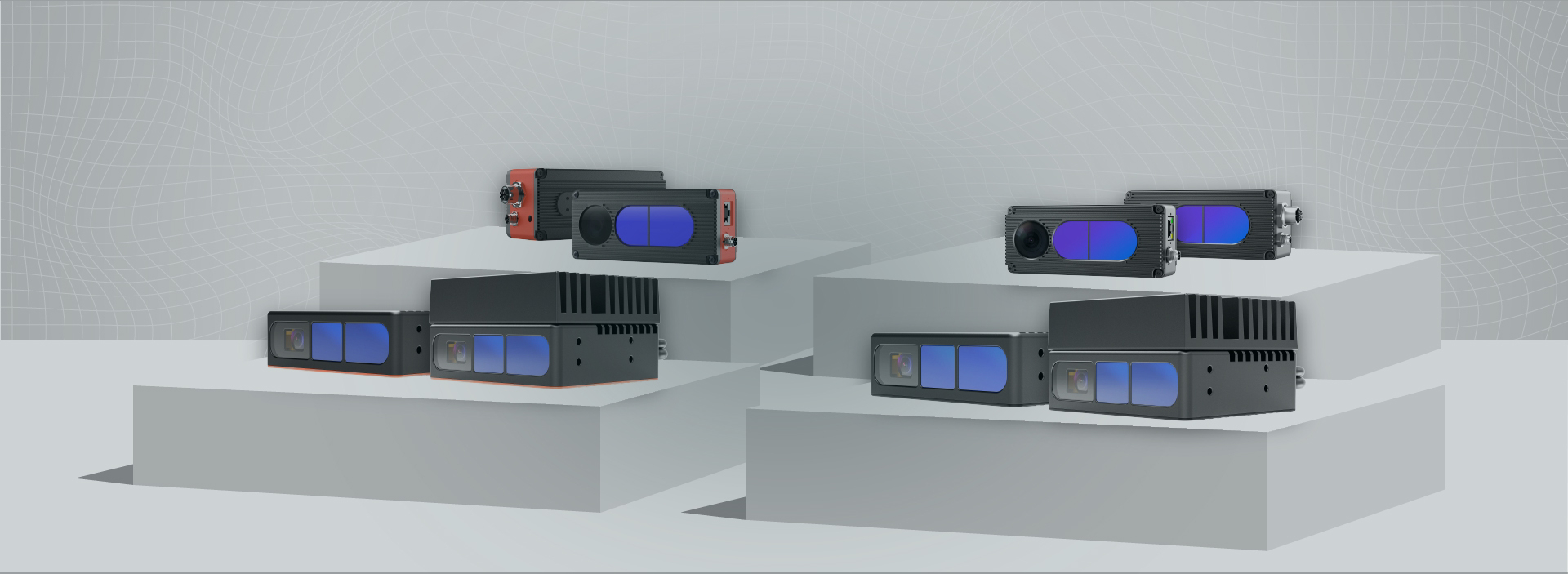

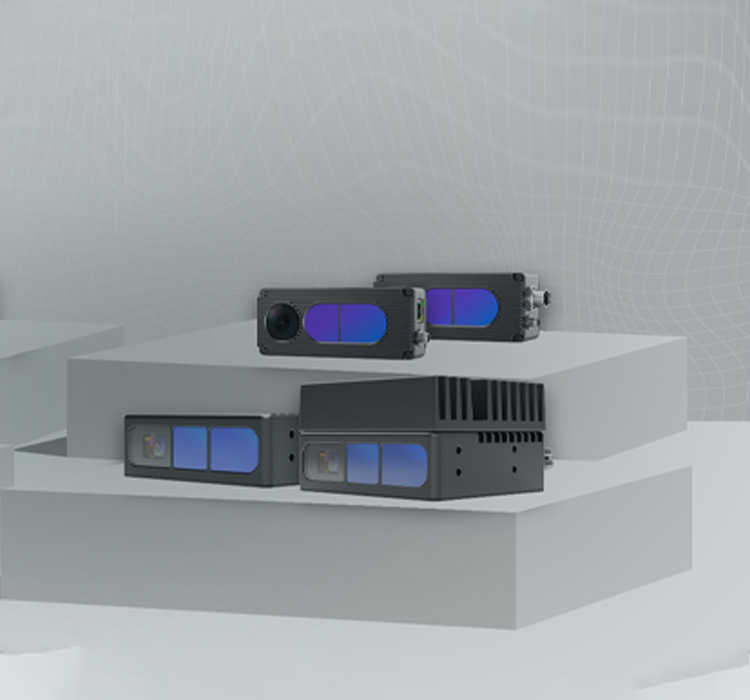

| RGB-D 3D ToF Camera NYX Series | |||
| Areas of Terminal Application | Product Advantages | Key Indicators | Product Images |
Passenger Flow Statistics Mobile Robots (AGV/AMR) Vision-guided Depalletizing/Palletizing Industrial Automation | High precision with low jitter Ambient light interference resistance High frame rate with low latency Wide visual angle and range RGBD 3D + color camera two-in-one design | RRGBD High Integration Design Size:118cm*50cm*20cm Single Camera Weight:400g Measurement Accuracy≈99% Working distance up to 8 meters IP67 Protection Rating Frame rate up to 30fps |
|
| RGB-D 3D ToF Camera DS Series | |||
| Areas of Terminal Application | Product Advantages | Key Indicators | Product Images |
Passenger Flow Statistics Mobile Robots (AGV/AMR) Vision-guided Depalletizing/Palletizing Industrial Automation等 | High precision with low jitter Ambient light interference resistance High frame rate with low latency Wide visual angle and range RGBD 3D + color camera two-in-one design | RGBD High Integration Design, Appearance Size: 118cm*50cm*20cm, Single Camera Weight: 400g Measurement Accuracy≈99% Working distance up to 8 meters IP67 Protection Rating Frame rate up to 30fps |
|
