Automotive Electronics

Relying on its profound technology accumulation and advantages in industrial chain integration, Goermicro innovatively launched product solutions such as intelligent touch interaction modules, in-vehicle and out-of-vehicle acoustic-related sensing modules and automotive-grade microsystem modules amidst the wave of automotive intelligence, and brought more precise and delicate sensory vibration feedback, a quieter space and more efficient system integration to intelligent cockpits, empowering travel with technology and driving automotive electronics towards a new intelligent era.

Advantages and Characteristics
Piezoelectric Touch Module
The world’s first integrated solution provider to mass produce piezoelectric touch modules and install these modules on the vehicles
Accelerometer Module
Industry-leading adjustable range ±4/±8/±16g, adapting to multi-position vibration pick up exterior the vehicle
External Acoustic Sensor Module
World-leading high AOP up to 139dB, ultra-large dynamic range
Internal Acoustic Sensor Array Module
Industry-leading ultra-wide bandwidth of 20~12.5k Hz, compatible with multi-zone voice control and ANC application
Automotive Actuator SiP
Multi-actuator die-level SiP, miniaturized design, high reliability performance, overall cost reduction benefits, and new solution leader in the industry
Automotive Domain Controller SiP
High-computing power SoC board-level SiP, performance enhancement, simplified design, system cost reduction and an important industry participant
Automotive Network-connected Communication SiP
Network-connected communication SiP, miniaturized design, flexible and efficient electromagnetic shielding solution, improved performance, and an important industry participant
Product Applications

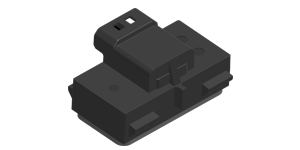

Active Noise Cancellation Acoustic Module

Product AdvantagesKey FeaturesProduct Images

It can achieve active cancellation of engine noise, tire road noise and wind noise and intelligent voice interaction of multiple voice zones in the smart cockpit

The structure design of 20~12.5 kHz ultra-wide bandwidth and ultra-small size can be compatible with multi-dimensional requirements such as customer voice and noise reduction scenarios, and installation positions of headrests, headliners and dome lights

It achieves one-time selection and full-function adaptation

Product Size: 24mm*21mm*16.9mm

Bandwidth: 20~12.5 kHz

Signal-to-noise Ratio: up to 71dB

AOP: up to 130dB

Interface: A2B or Analog


In-car Acoustic Sensor Array Module

Product AdvantagesKey FeaturesProduct Images

For intelligent voice interaction of multiple voice zones in automotive cockpits

Active noise reduction for acoustics of automotive cockpits

The structure design of high consistency, 20~12.5 kHz ultra-wide bandwidth and ultra-small size can be compatible with multi-dimensional requirements such as customers’ multi-zone voice and noise reduction scenarios, and installation positions of headrests, headliners and dome lights

It achieves one-time selection and full-function adaptation


Product Size: 40mm*20mm*16.9mm

Bandwidth: 20~12.5 kHz

Signal-to-noise Ratio: up to 71dB

AOP: up to 130dB

Interface: A2B or Analog

Array: Double, three or four elements optional

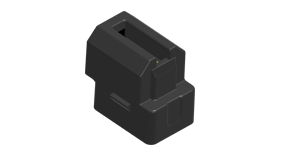

Emergency Call Acoustic Module

Product AdvantagesKey FeaturesProduct Images

It is used for vehicle emergency call system. The mature, reliable and ultra-small product design is compatible with installation location requirements for canopies, dome lights and etc, providing a reliable basis for establishing a voice link between drivers and rescue services in case of emergency

Product Size: 18.2mm*14mm*16.8mm

Bandwidth: 20~12.5 kHz

Signal-to-noise ratio: up to 71dB

AOP: up to 130dB

Interface: Analog

Standard: ITU P1140GOST, etc

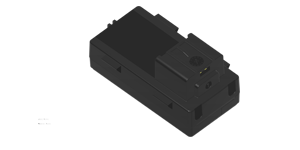

Out-of-vehicle Acoustic Sensor Module

Product AdvantagesKey FeaturesProduct Images

It can realize voice interaction and intercom outside the vehicle cockpits

Acoustic event detection outside the vehicle cockpit in the status of driving (e.g., intelligent driving siren sound recognition, blind zone detection)

With an ultra-large dynamic pickup range of up to 139dB (the highest globally), IP6K7 & IP6K9K reliable protection, a temperature range of -40~105℃ and diverse installation structures, it effectively addresses sound pickup application needs in various scenarios such as parking, low-to-medium speed and high-speed (strong wind noise), providing reliable assurance for user convenience and intelligent driving safety

Product Size: 35mm*23.05mm*19.45 mm

Bandwidth: 50~10 kHz

Signal-to-noise Ratio: 64~70dB optional

Acoustic Overload Point: 120130139dB optional

Interface: A2B or Analog

Protection: IP6K7 & IP6K9K

Array: Single, double, three or four elements optional

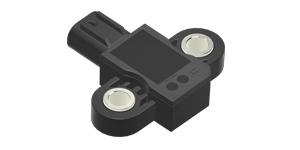

RNC Accelerometer Module

Product AdvantagesKey FeaturesProduct Images

For Engine, Road, Wind Noise Active Cancellation application

Various mechanical design and suitable for assembly to suspension, chassis or body

ProductSize: 46.4mm*54mm*23.6mm

Range: ±16g

Bandwidth: DC~2kHz

Idle Noise:<1mg

Interface: A2B

Protection: IP6K7 & IP6K9K


Touch Door Handle Module
Product AdvantagesKey FeaturesProduct Images

Integrated injection molding, integrated piezoelectric, NFC, BLE modules

Pressure-sensitive trigger with adjustable sensing levels

Addressing the issue of Accidental High-Pressure Washer Triggering

Glove-Friendly Control, Rain-Proof Operation

Single Module Thickness: 9.7mm

Pressing Trigger Force: 3N

Maximum Amplitude: 15μm

Average Vibration Acceleration: 1.5g

System Response: ≤10ms

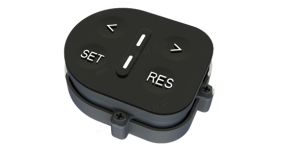

Touch Steering Wheel Module
Product AdvantagesKey FeaturesProduct Images

Compact size, two-in-one button and feedback device

Pressure-sensitive trigger with anti-false touch mechanism

Low vibration range for localized feedback

No slots required for keyboard placement, ID design freedom


Single Module Thickness: 25mm

Pressing Trigger Force: 3.5N

Maximum Amplitude: 10μm

Average Vibration Acceleration: 4g

System Response: ≤10ms

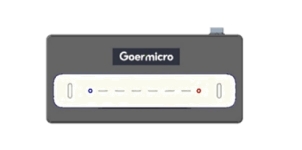

Smart Touch Panel Module
Product AdvantagesKey FeaturesProduct Images

Integrated sensory vibration and gesture control design

Precise localized perceptual feedback with sensitive screen touch

Match a variety of CMF materials, OTA upgradable function


Module Size: 184mm*92mm*37mm

Pressing Trigger Force: 3N

Maximum Amplitude: 15μm

Average Vibration Acceleration: 1.5g

System Response: ≤10ms


In-vehicle Vital Sign Detection UWB SiP
Product AdvantagesKey FeaturesProduct Images

Vehicle keyless entry and start, precise positioning, vital sign detection

Small-size modular design

Single-side molding with metal sputter electromagnetic shielding layer

Size: 7.0mm*7.0mm*1.66mm

Standard: IEEE802.15. 4z (BPRF/HPRF mode)

Positioning: 1T3R transceiver architecture, supporting 3D-PDoA

Frequency Band: Channel 5-12

Data Rate: 64Mbps

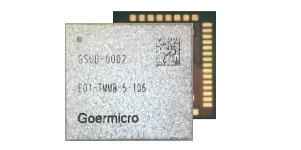

Automotive Digital Key UWB & BT SiP

Product AdvantagesKey FeaturesProduct Images

Vehicle keyless entry and start

UWB & BLE & G sensor multifunctons in 1 package

Small-size modular design

Single-side molding with metal sputter electromagnetic shielding layer

Size: 10.5mm*8.3mm*1.2mm

Processor: ARM Cortex-M4 @64MHz

UWB Standard: IEEE 802.15.4z

Bluetooth: BT5.0

UWB Positioning: supporting RDoA、PDoA

Data Rate: 6.8Mbps

G sensor: 3-axis

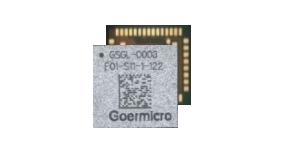

Automotive Cockpit Wi-Fi SiP

Product AdvantagesKey FeaturesProduct Images

Vehicle cockpit system networking and multi-device networking

Small-size modular design

Single-side molding with metal sputter electromagnetic shielding layer

Size: 13.0mm*9.0mm*1.25mm

Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be

Frequency: 2.4G/5G/6G

Bluetooth: BT5.4

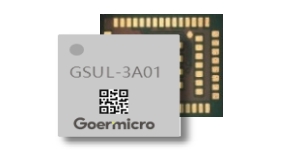

Automotive Cockpit GNSS SiP
Product AdvantagesKey FeaturesProduct Images

Vehicle's precise positioning and route navigation functions

Small-size modular design

Single-side molding with metal sputter electromagnetic shielding layer

Size:4.9mm*5.3mm*0.9mm

Network: supporting GPS, GLONASS, BeiDou, Galileo, QZSS

Frequency: L1

Cold Start Time and Sensitivity: 33s @-130dbm

Tracking Sensitivity: -161dBm

Power Consumption for Satellite Rearch: 14mA
