Goermicro empowers a new smart home appliances ecosystem by leveraging advanced sensing and interaction technologies to enable home appliances to “perceive” user needs. Through acoustic, pressure, optical, and haptic solutions, it achieves comprehensive intelligence in home scenarios, creating a convenient, comfortable, and personalized smart home living space for users, ushering in a new era of smart home appliances.

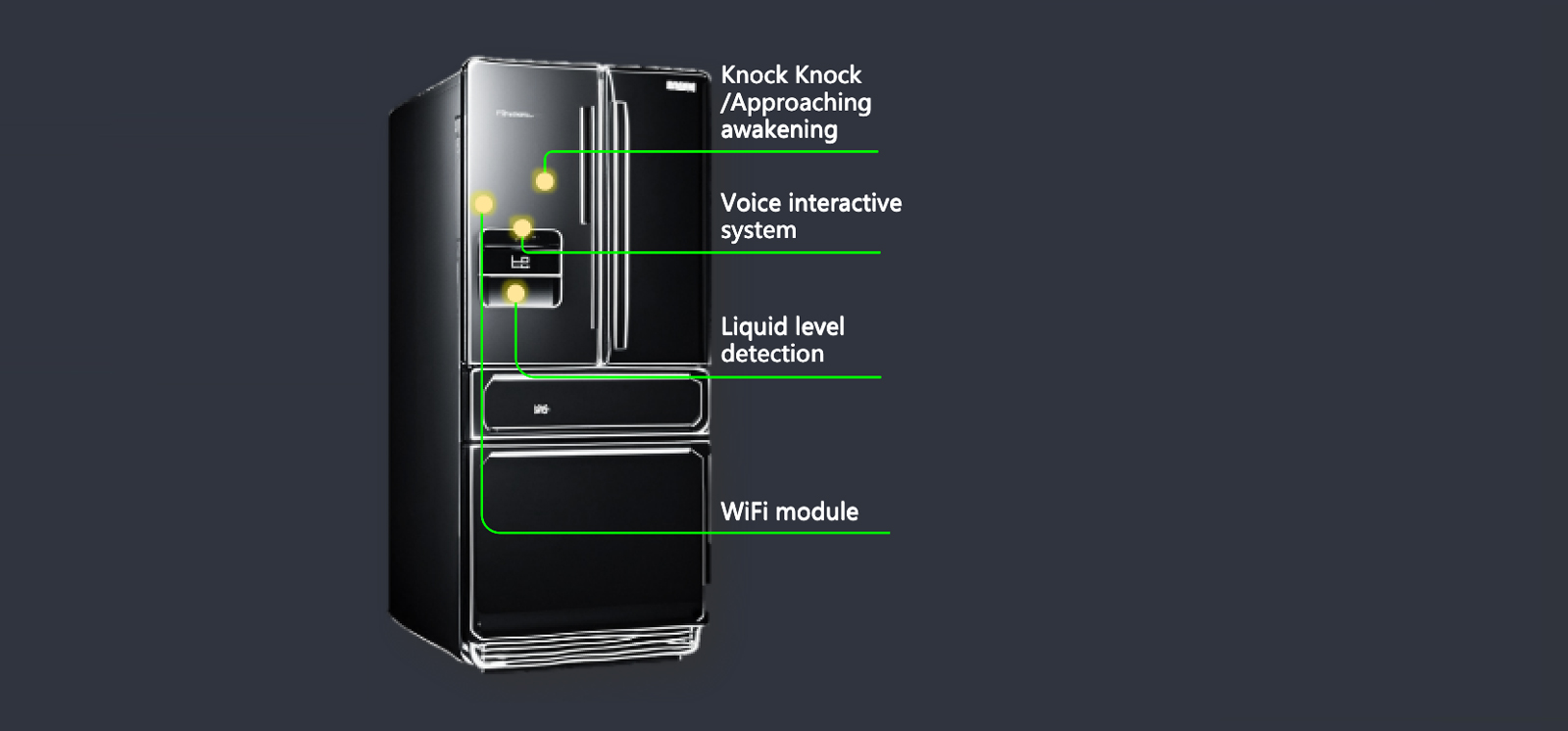

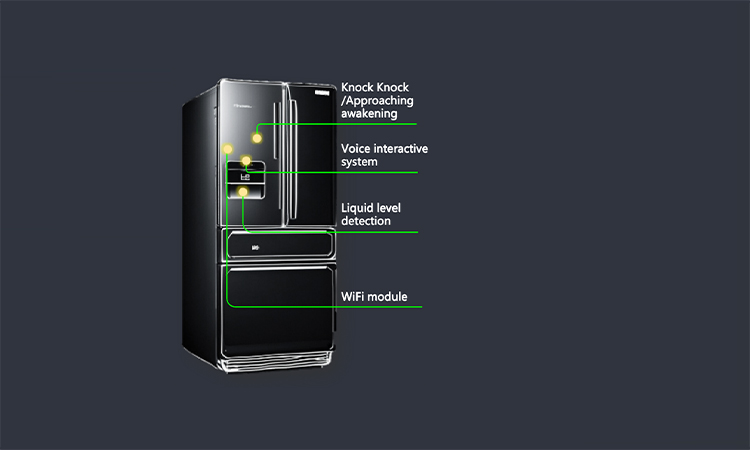

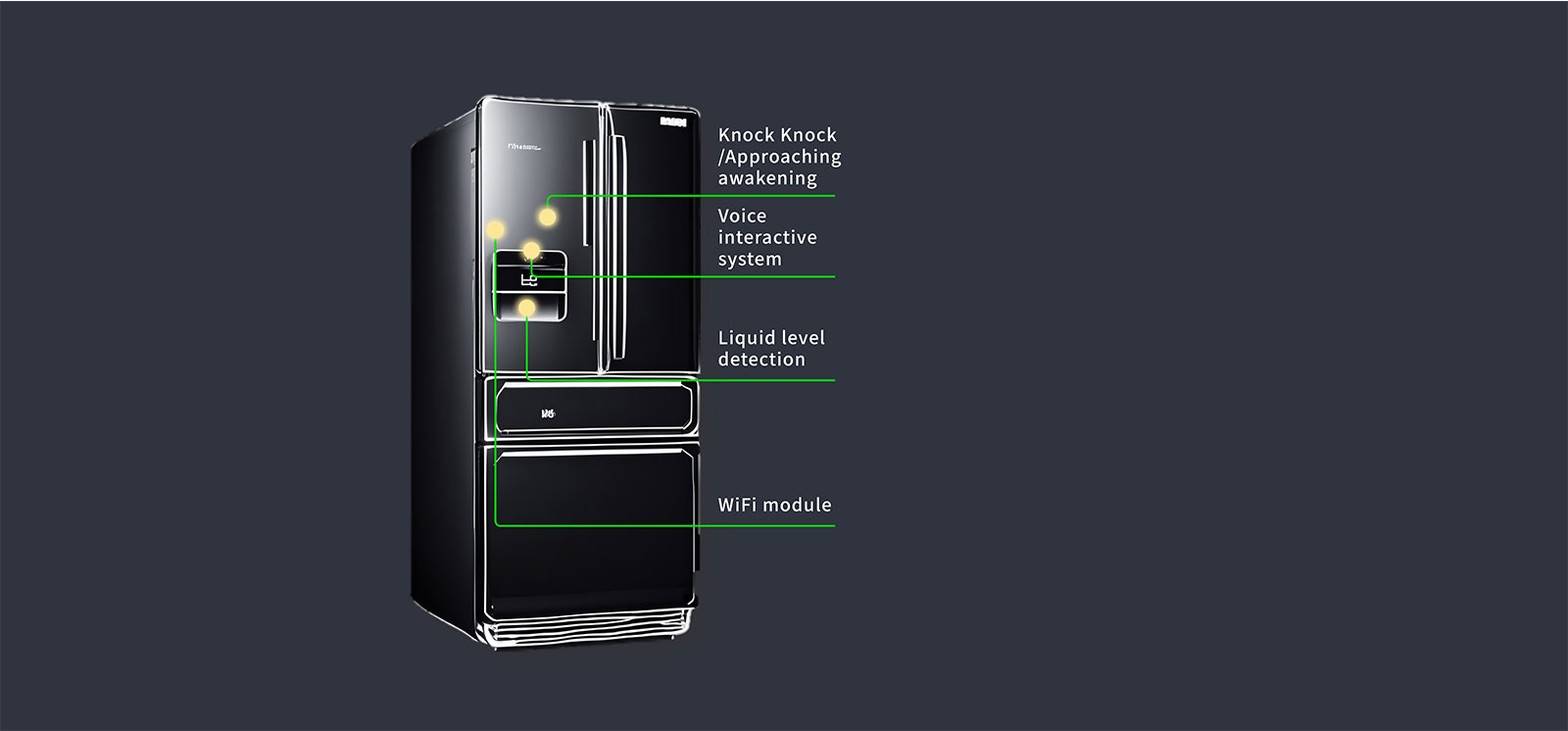

Refrigerators

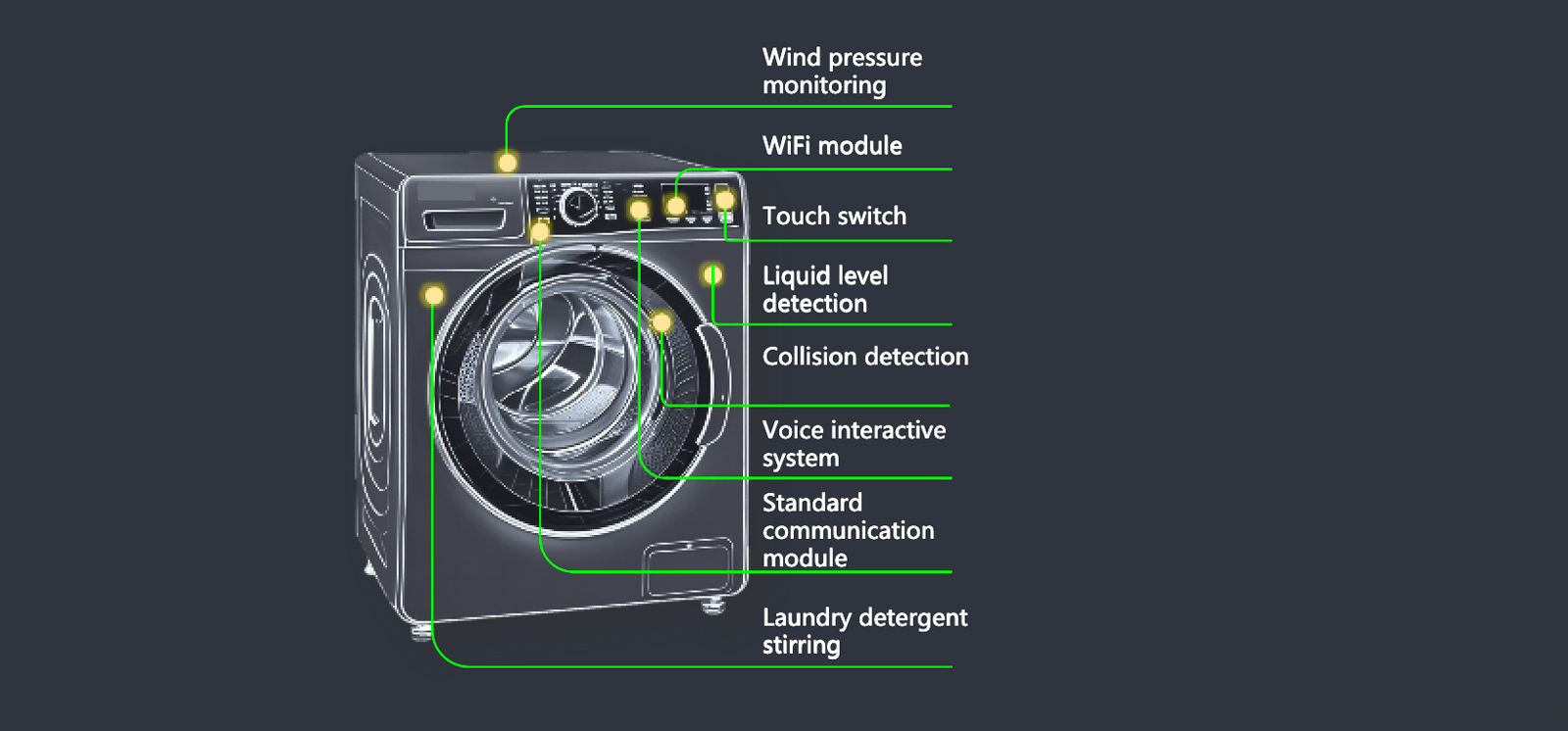

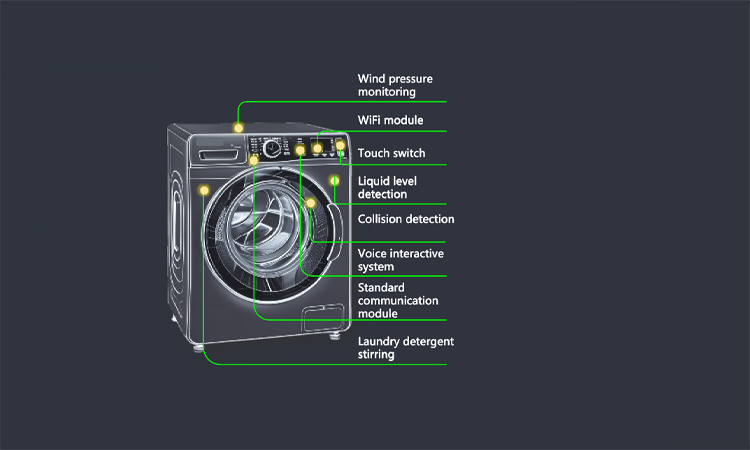

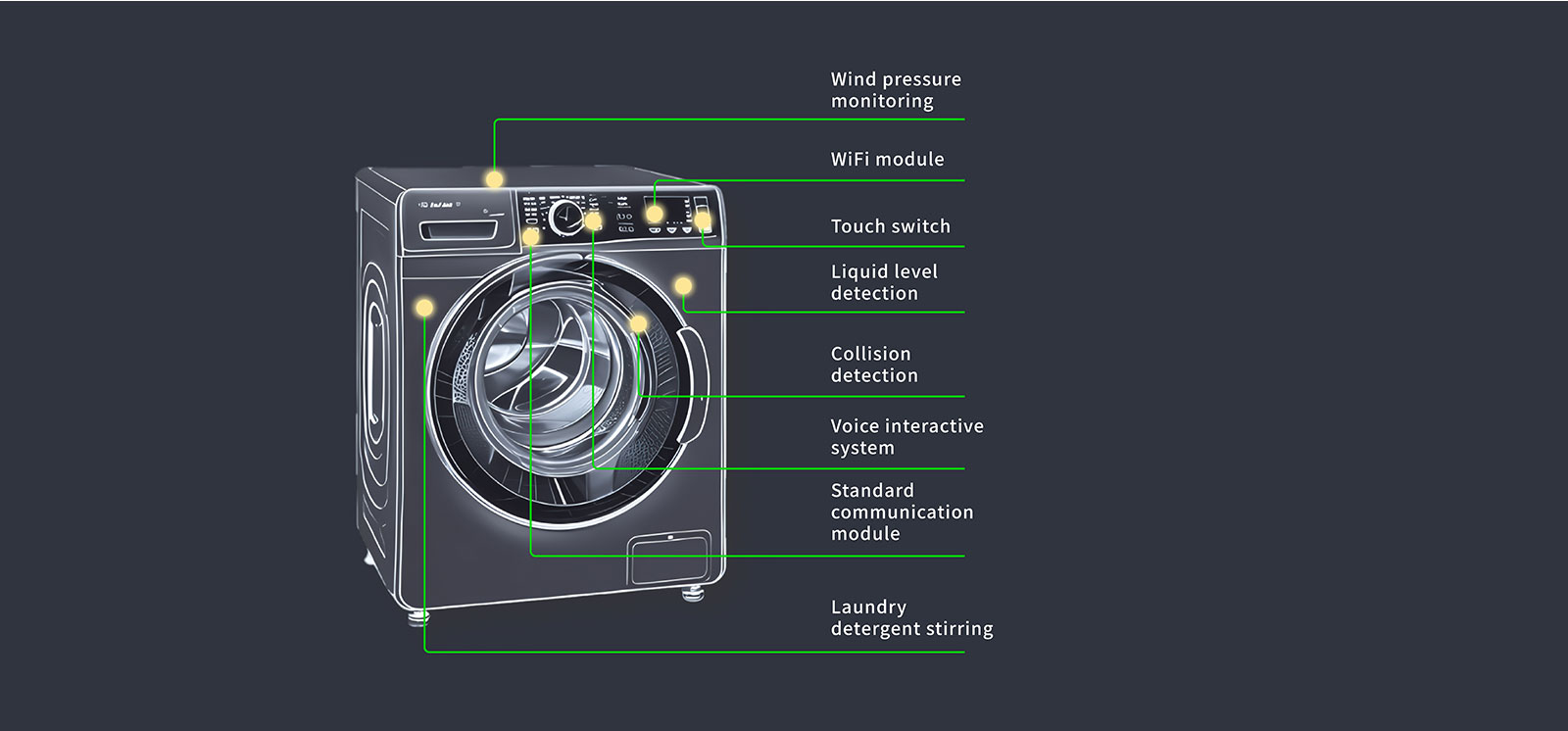

Washing Machines

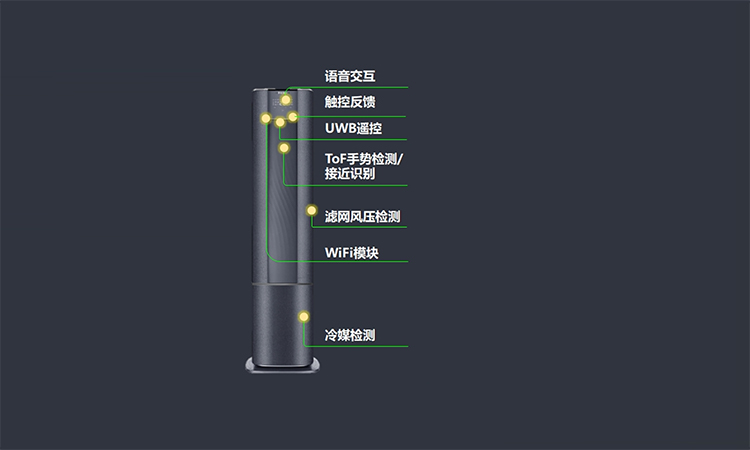

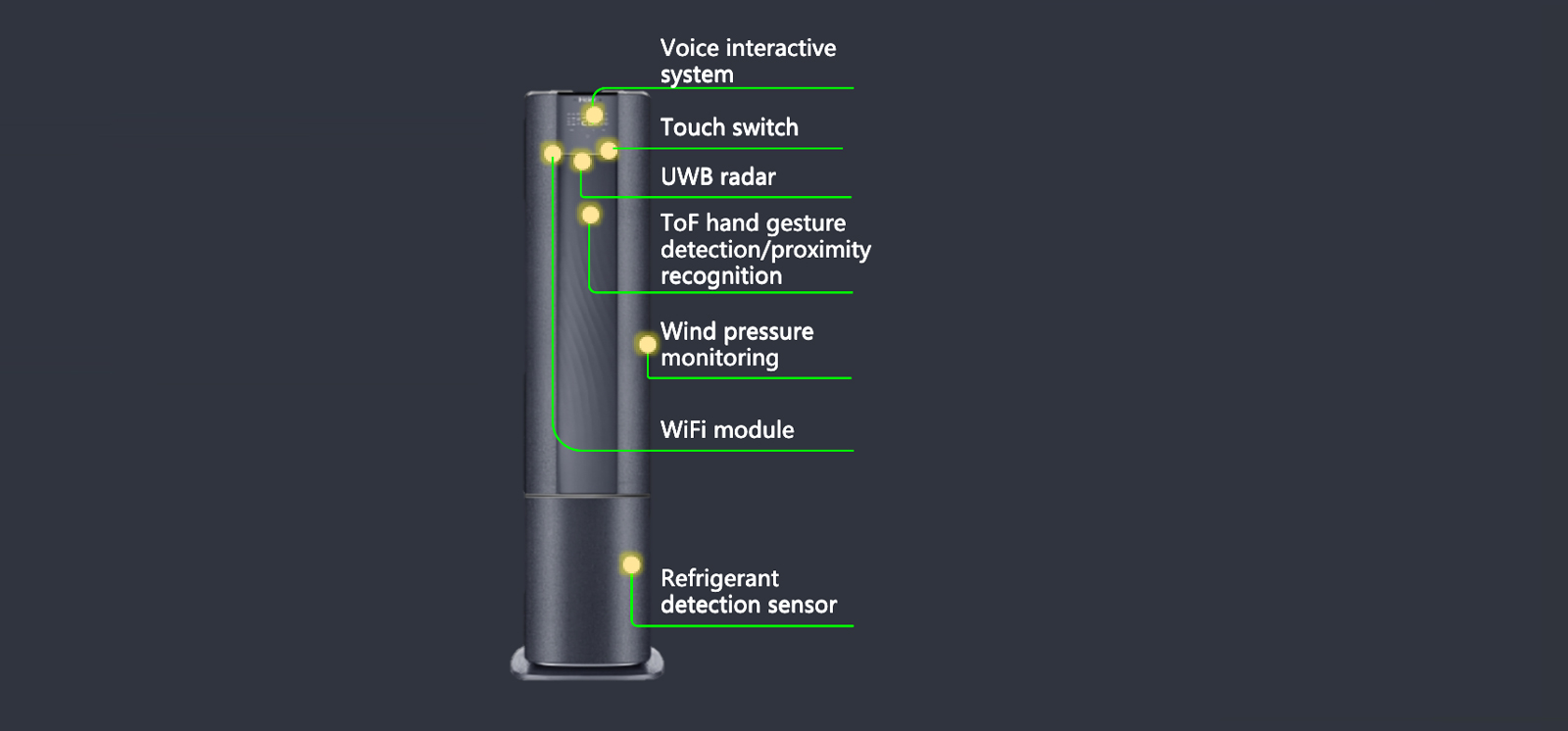

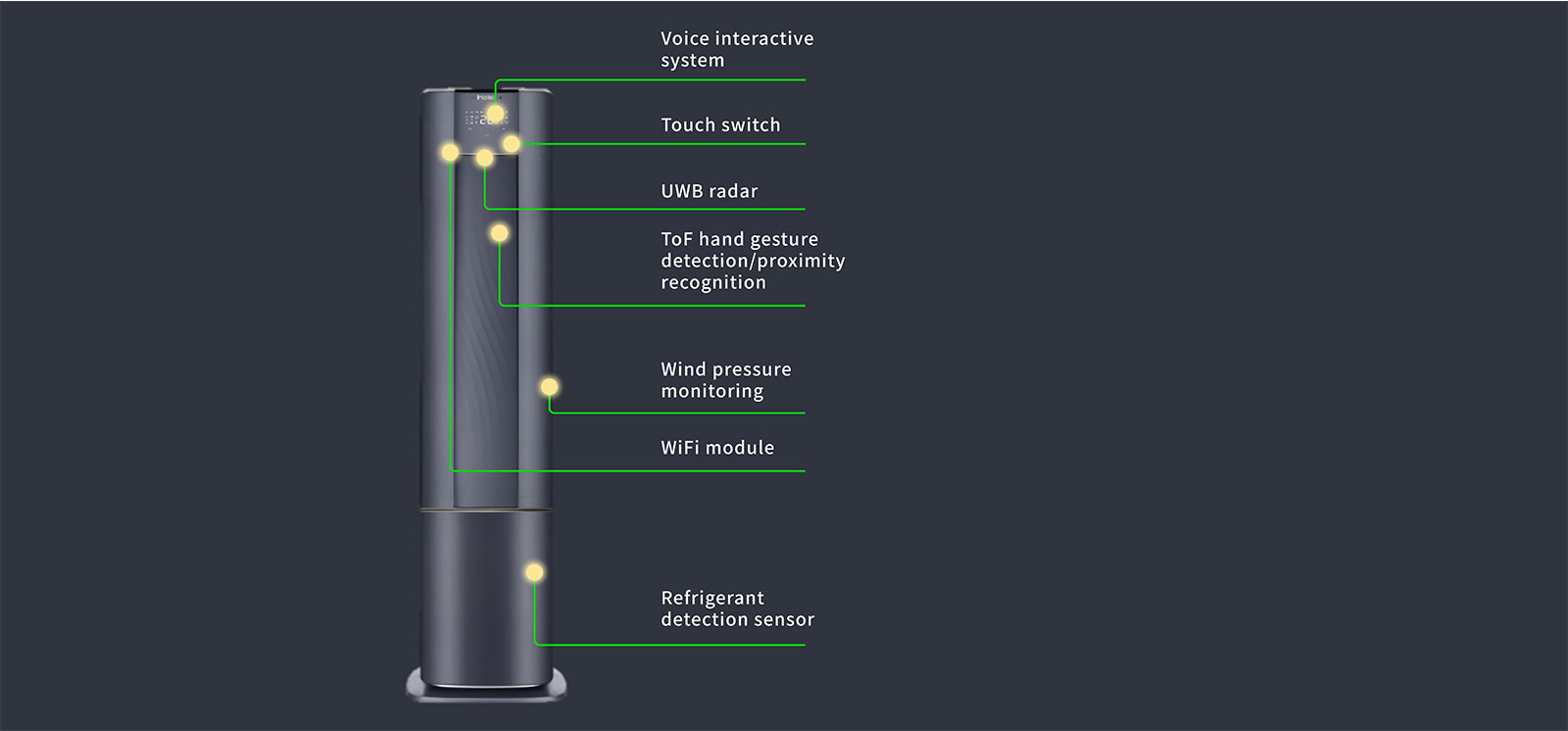

Air Conditioners

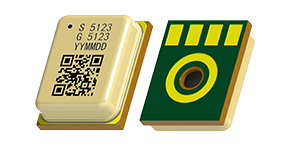

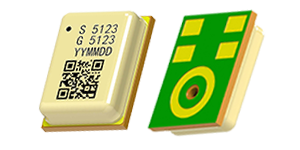

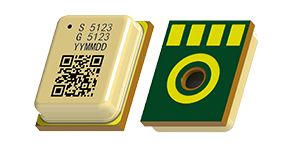

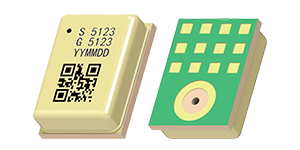

| High-performance Acoustic Sensor | |||
| Terminal Applications | Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, etc. | High SNR for clear sound detail capture and an enhanced voice interaction experience Wide frequency response to restore natural and authentic sound quality Low distortion to ensure sound purity | Size: 5.0mm*4.0mm*1.33mm Sensitivity: -35dB SNR: 75 dB AOP: 136dBSPL Current:<300μA |  |

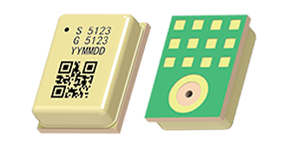

| Intelligent Acoustic Sensor | |||
| Terminal Applications | Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, etc. | Fast local wake-up, protecting user privacy Multi-command recognition, convenient human-machine interaction Ultra-low power consumption design, extending terminal battery life Supports custom wake-up words, applicable to voice interaction and event detection | Size: 3.56mm*2.65mm*1.08mm Sensitivity: -38dB SNR: 63dB AOP: 123dBSPL Power Consumption:<0.5mW |  |

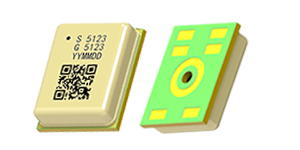

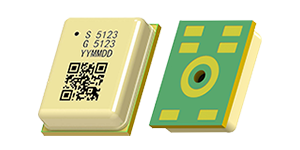

| Dustproof Acoustic Sensor | |||
| Terminal Applications | Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, etc. | Efficiently filters particles of 2.5μm and larger, with 99% filtration efficiency for 5μm particles IP6X dustproof capability, contributing to higher assembly yields | Size: 3.5mm*2.65mm*0.98mm Sensitivity: -37dBFS SNR: 65dB AOP: 131dBSPL Current:<1100μA |  |

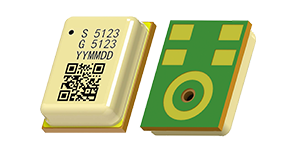

| Waterproof Acoustic Sensor | |||
| Terminal Applications | Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, etc. | IP68 waterproof and dustproof, effectively preventing dust and water ingress Semiconductor process to integrate and mount a waterproof membrane, ensuring superior product consistency To simplify the overall design and reduce assembly complexity | Size: 3.1mm*2.5mm*0.95mm Sensitivity: -37dBFS SNR: 64dB AOP: 130dBSPL Current:<600μA |  |
| Voice Pick-Up (VPU) Sensor | |||
| Terminal Applications | Product Advantages | Key Features | Product Images |
| Earphones, AI glasses | High signal-to-noise ratio performance, picking up effective voice vibration signals To achieve low power consumption and longer battery life of the products through hardware optimization and integration | 3.5mm*2.65mm*1.3mm SNR: ≥77dB Current: 120/125μA |  |

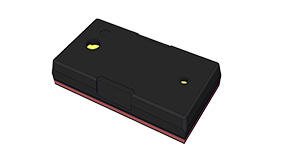

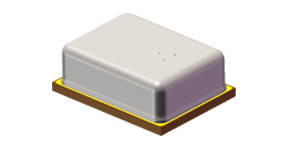

| 1D ToF Sensor | |||
| Terminal Applications | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, smart bathrooms, vacuum cleaners, etc. | Small-sized integrated packaging, convenient for terminal machine assembly High product precision, improving measurement accuracy Flexible adjustment of measurement distance (short-range, long-range) | 4.4mm*2.4mm*1.0mm Measurement Accuracy: ±3% Measurement Distance: 5mm~4m |  |
| Touch Piezo Feedback Uni | |||
| Terminal Applications | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, vacuum cleaners, etc. | Low power consumption Lightweight Fast response speed Customized vibration sensation with fine adjustability | Size: 19mm*19mm*2mm Capacitance: 3000nF Amplitude: 190um Acceleration: 17g Maximum Pressure Resistance: 150N Operating Voltage: -20～100Vp-p |  |

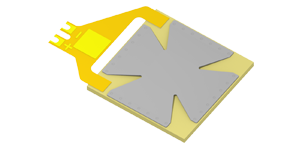

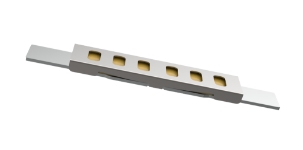

| Touch Piezo Feedback Unit | |||
| Terminal Applications | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, vacuum cleaners, etc. | Low power consumption Lightweight Fast response speed Customized vibration sensation with fine adjustability | Size: 31mm*4.8mm*1.45mm Structure: Ceramic steel plate (304000146569-01)-2004 Ceramic-coupled steel plate (304000146568-01) |  |

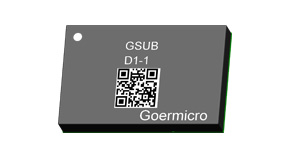

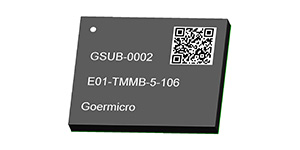

| Bluetooth + UWB SiP | |||
| Terminal Applications field | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, televisions, etc. | UWB+BLE+G-Sensor multi-functional small-sized SiP • Adopting Qorvo DW3120 sensor • Supporting Bluetooth connection function • Certified to FCC standards | Size: 10.5mm*8.3mm*1.2 mm Processor: ARM Cortex-M4 @64MHz UWB Standard: IEEE 802.15.4z Bluetooth: BT5.0 UWB Positioning: supporting RDoA、PDoA Data Rate: 6.8Mbps |  |

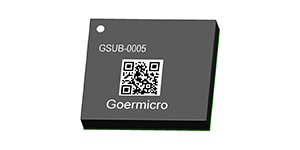

| UWB SiP 1 | |||
| Terminal Applications field | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, televisions, etc. | Consumer-grade UWB SiP • Integrating NXP SR100T UWB sensor | Size: 7.6mm*4.9mm*1.2mm Standard: IEEE 802.15.4z Positioning: support 3D-AoA Distance Measurement Accuracy: ±10cm Angle Measurement Accuracy:±3° Data Rate: 31.2Mbps |  |
| UWB SiP 2 | |||
| Terminal Applications | Product Advantages | Key Features | Product Images |
| Refrigerators, washing machines, air conditioners, televisions, etc. | Consumer-grade UWB SiP • Integrating NXP SR150 multi-protocol UWB SoC | Size: 6.6mm*5.8mm*1.2mm Standard: IEEE 802.15.4z Positioning: supporting 3D-AoA Frequency Band: Channel 5\6\8\9 Distance Measurement Accuracy: ±10cm Angle Measurement Accuracy: ±3° Data Rate: 31.2Mbps |  |
